| Product Parameter |
Parameter Description |
| Dimension of main body |
L180xW40xH63mm |
| Width of doormax |
950mm |
| Weight of door max |
40-65kg |
| Ack-check Function |
NO |
| Max open angle |
180 |
| Closing speed adjustment |
Spee1:180°-15° ; Speed2:15°-0° |
| Applicable temperature |
-20℃-45℃ |
| Applicability |
left open or right open door |
| Passed durability test |
500,000 cycles |
| Weight |
1.5kg |

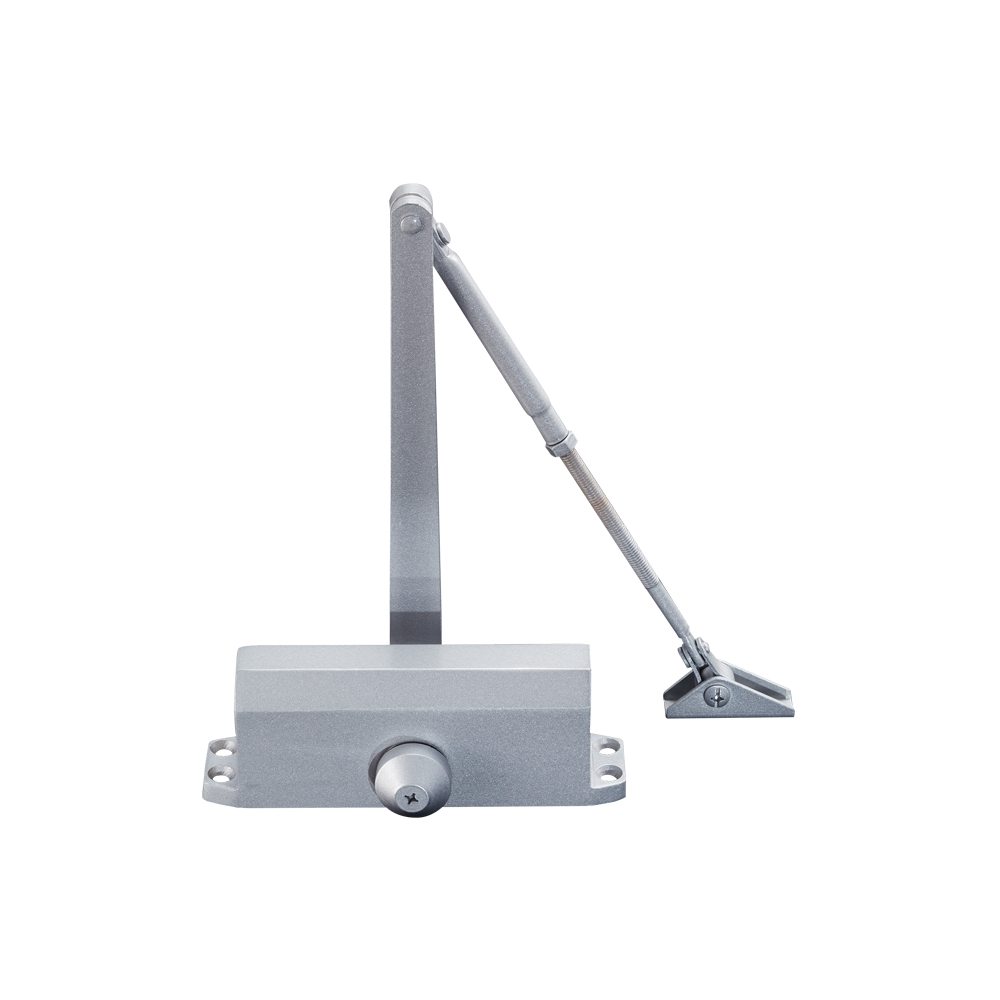

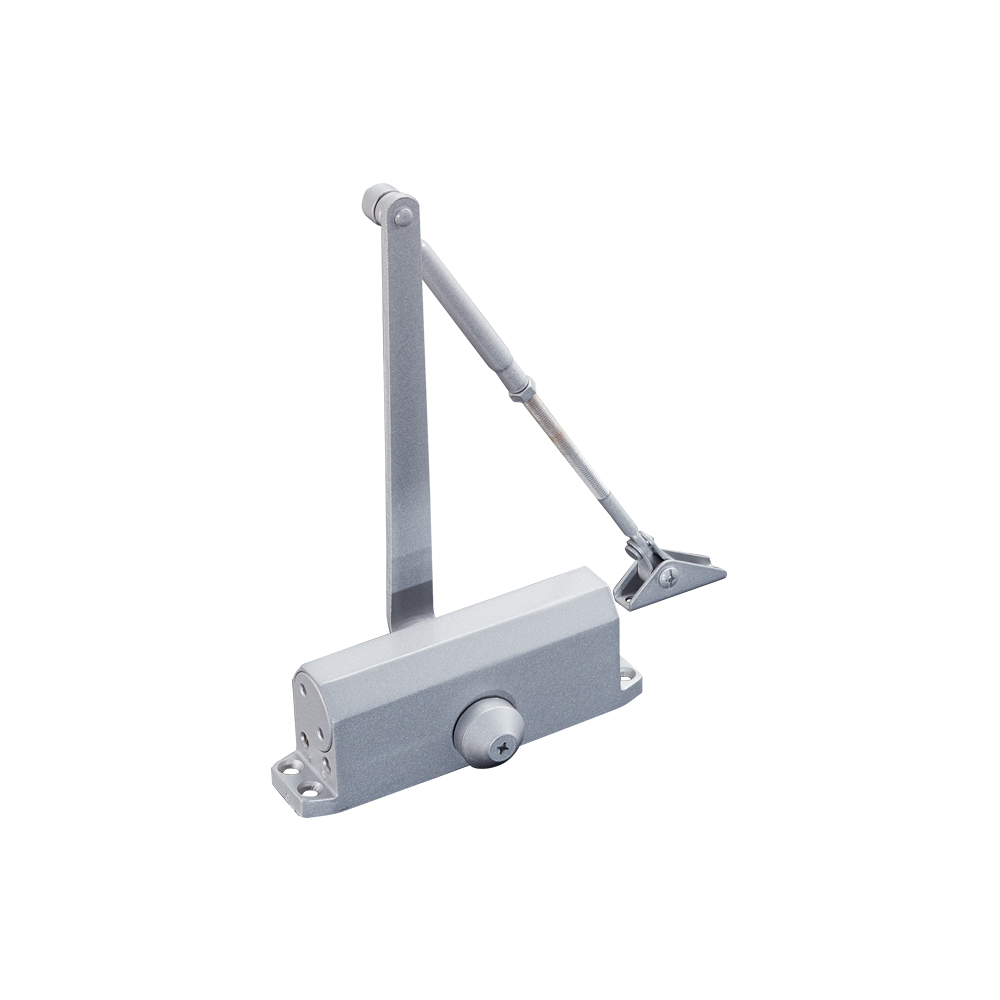

Door closer is installed at the top of the door leaf with single opening, is applicable to wooden door、steel door and fire door.
Appliable to single door with the maximum door width of 950mm and door weight of 40-65kg.
coming soon
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
