Product Parameter |
Parameter Description |
Dimensions |
86Lx86Wx12H(mm) |
Voltage |
12-24V |
Current |
≤60mA |
Output Contact |
NO/NC/COM |
Waterproof Level |
IP67 |
Operating Temp |
-20℃~50℃ |
Standard instruction |
Mirror Surface Tempered Glass |
Current Rating |
1A@30VDC |
LED Status |
Red: Standby Green : Operation |
Wire color |
Red:Positive Black:Negative Yellow:NC White:COM Green: NO |
Weight |
0.2kg |
Certification numbe |
ECM 23 ATEX-B DN 89 |
ATEX |
II 1G Ex ib IIC T6 Gb II 2D Ex ib IIIC T85°C /T100°C Db |

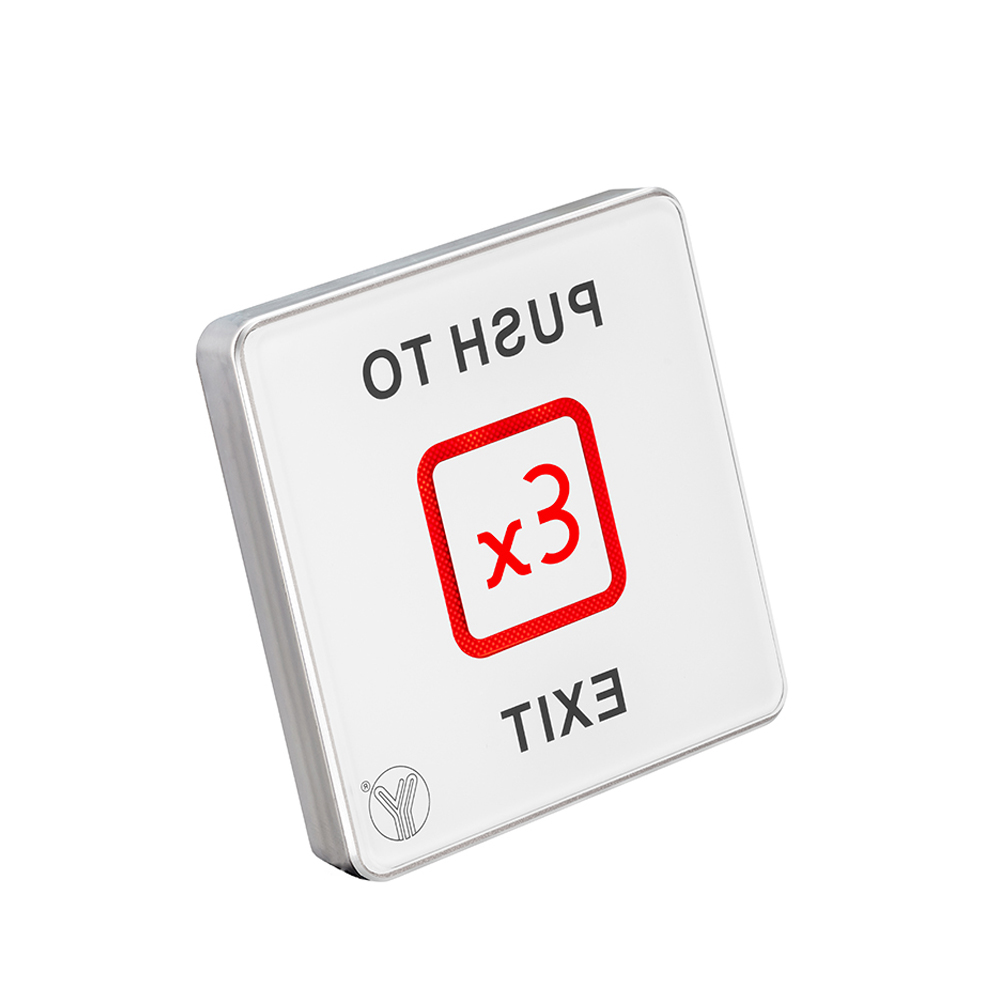

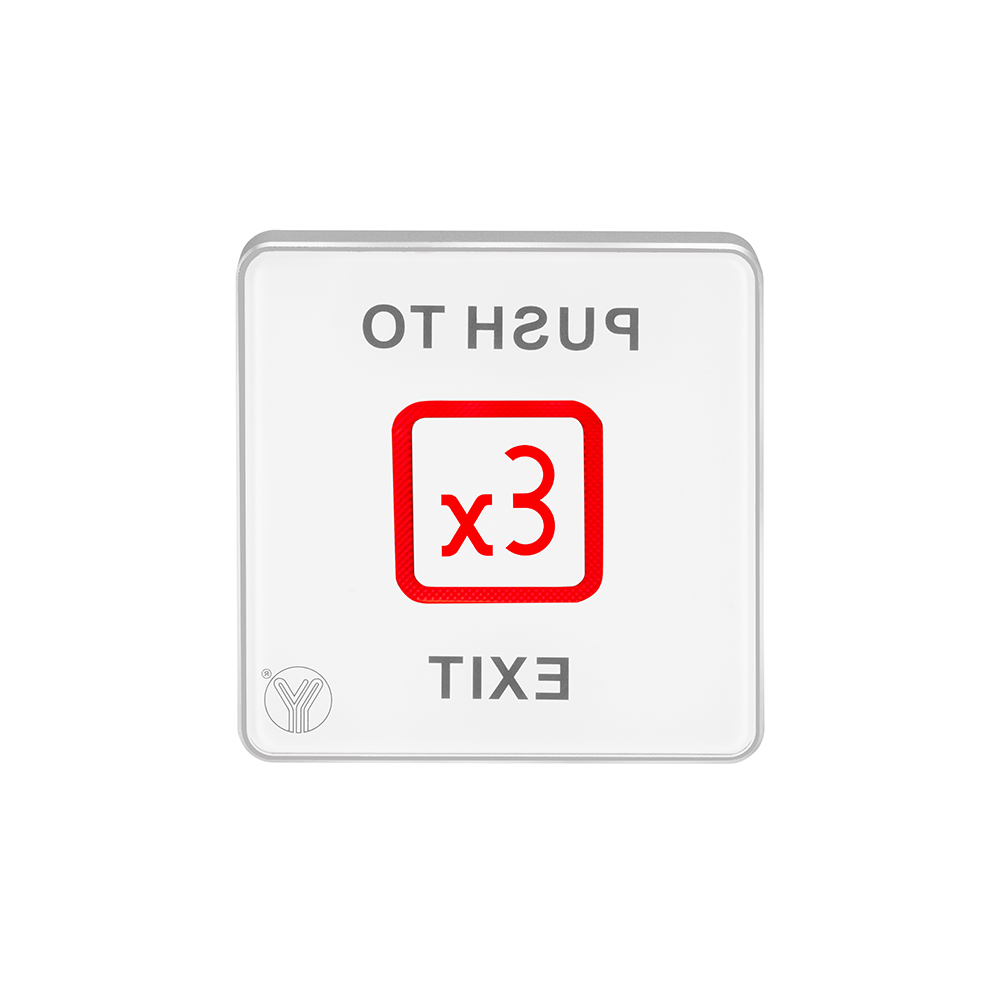

Explosion-proof anticorrosive touch button, with intrinsically safe structure, the housing is made of zinc alloy material by die-casting, the panel is tempered glass material, high strength, beautiful appearance, with corrosion resistance, impact resistance, good thermal stability
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
