Product Parameter |
Parameter Description |
Dimensions |
86Lx86Wx25.7H(mm) |
Input |
DC12V |
Contact Rating |
1A@30VDC |
Current |
≤70mA |
Output Contact |
NO/NC/COM |
Mechanical Life |
100,000 tested |
Material |
Stainless |
Suitable for Door |
Hollow Door |
Waterproof Level |
IP67 |
Operating temp |
-20℃~+50℃(14-131F) |
Suitable Humidity |
0-95% (relative humidity) |
Detection range |
6cm(±2cm) |
LED Indicator |
Red LED indicator: Power ON(standby) Green LED indicator: Power ON(sensation) |
Weight |
0.2kg |
Certification numbe |
ECM 23 ATEX-B DN 89 |
ATEX |
II 1G Ex ib IIC T6 Gb II 2D Ex ib IIIC T85°C /T100°C Db |

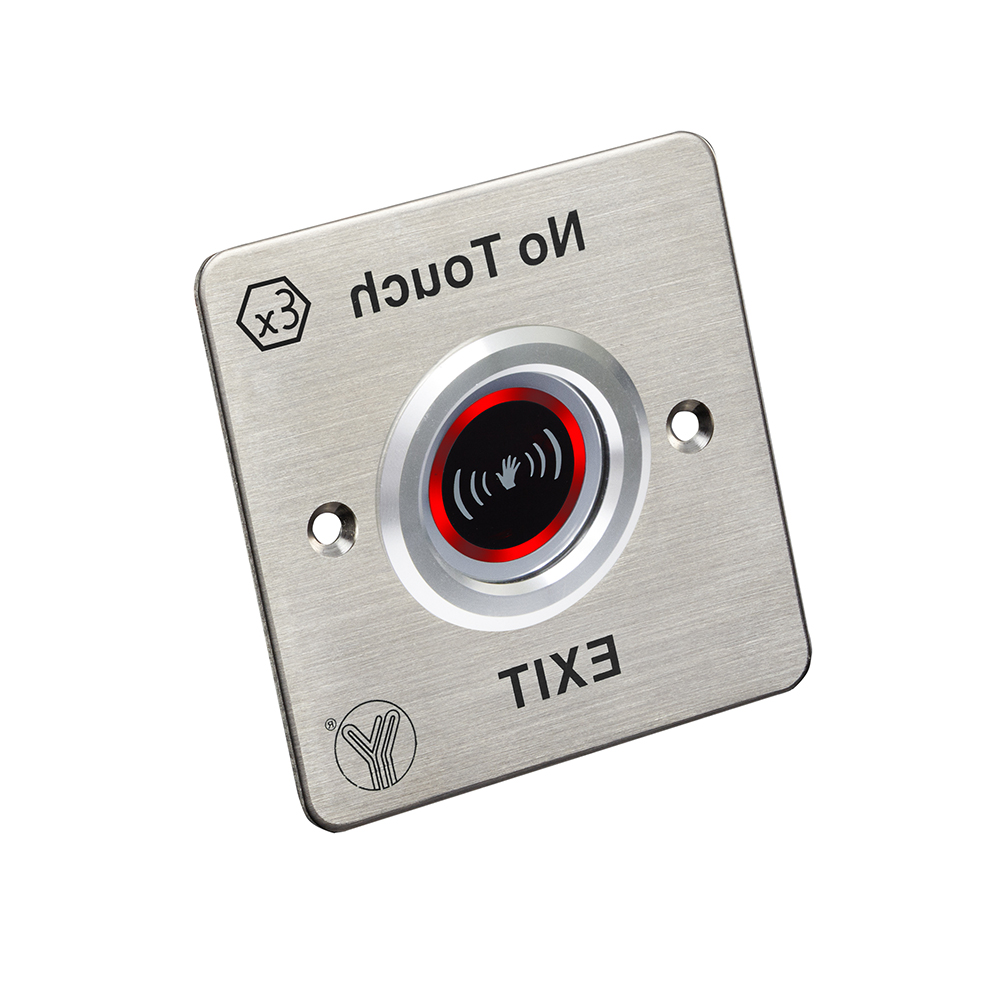

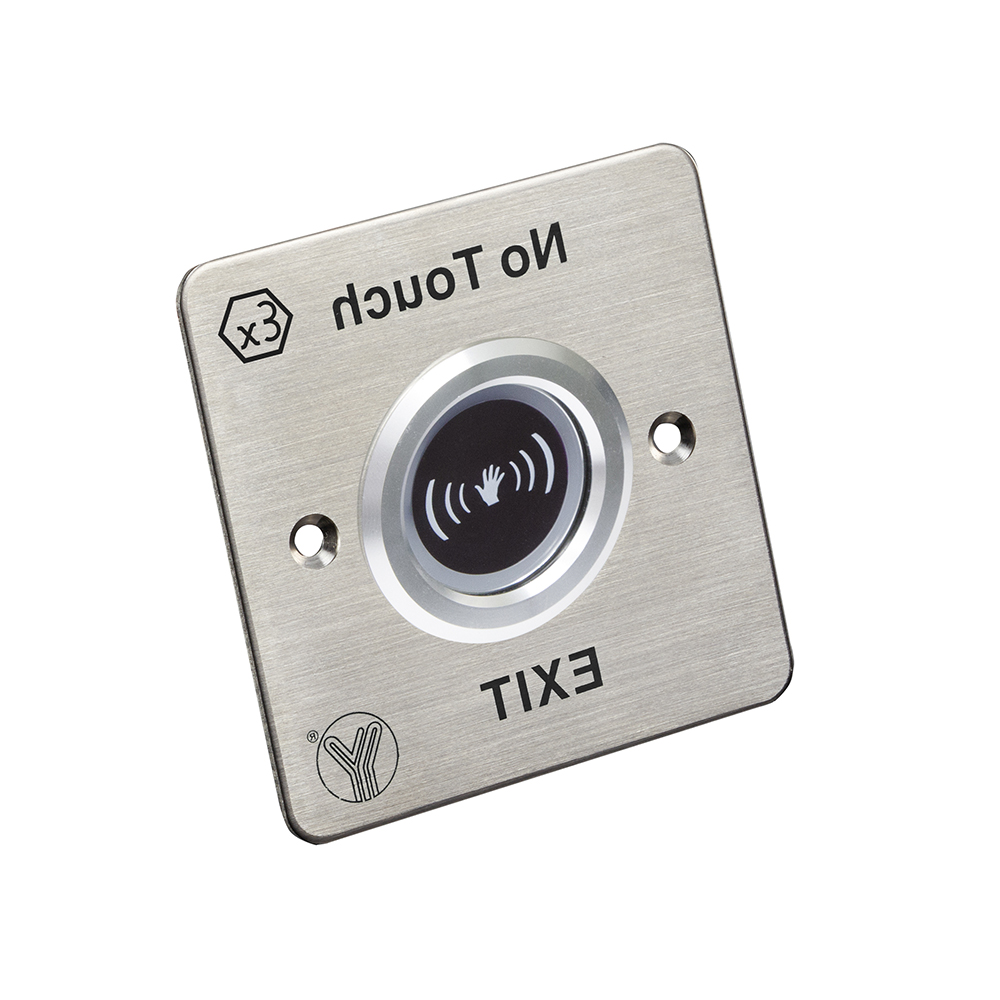

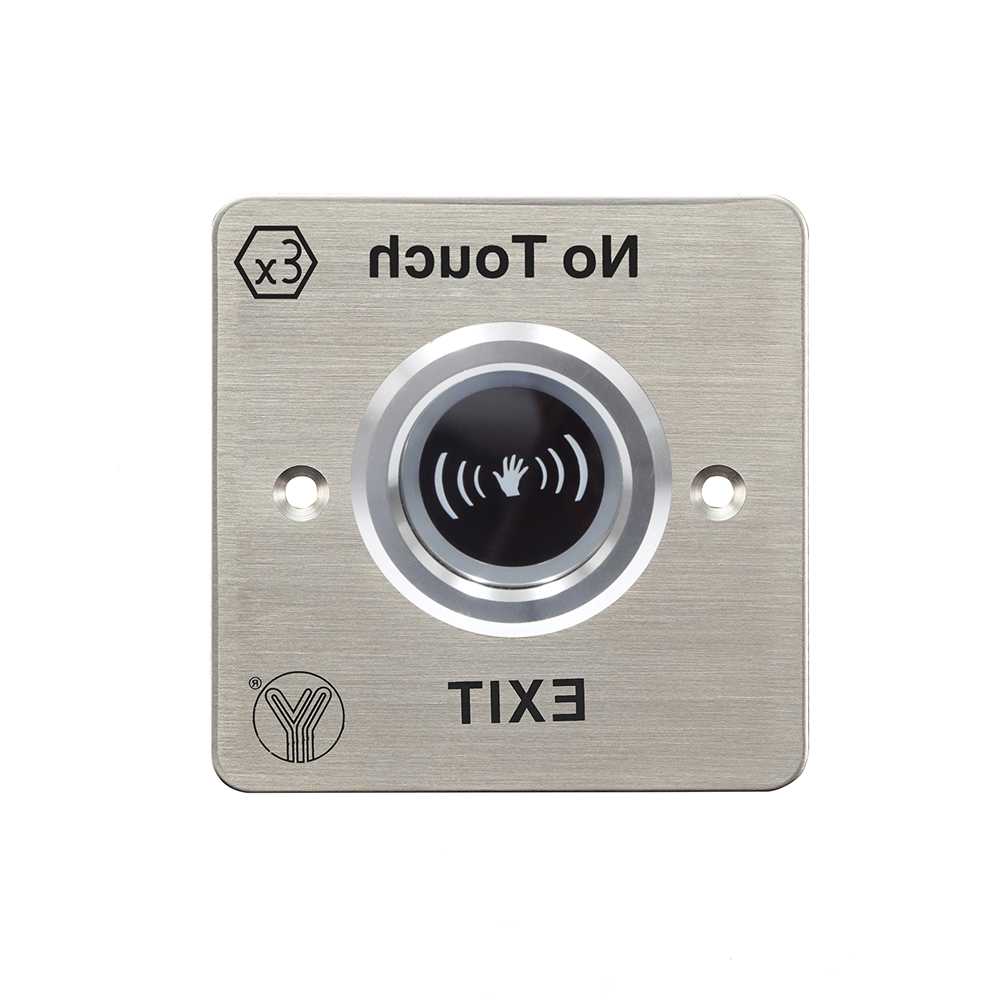

Explosion-proof anticorrosive infrared exit button, with intrinsically safe structure, the housing is made of high-strength aluminum alloy, panel is 304 stainless steel, the double-layer cover is made of tempered glass, high strength, beautiful appearance, with corrosion resistance, impact resistance, good thermal stability
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
