| Product Parameter |
Parameter Description |
| Dimensions |
86Lx86Wx20H(mm) |
| Standard structure |
Stainless steel panel, metal Button |
| Current rating |
3A@36VDC Max LED/12VDC |
| Output contact |
TAMP / NO / COM / NC / -LED+ |
| Mechanical life |
100,000 tested |
| Suitable for door |
Hollow Door |
| Safe Type |
weatherproof, Defend and Duplicate the Key |
| Operating temp |
10～+55(14-131F) |
| Operating humidity |
0-95% (non- condensing) |
| Panel Material |
Stainless steel panel,wire drawing finished |
| Weight |
0.18kg |
| Certification |
CE-EMC CE-LVD FCC-VOC |
Design with no Mechanical Bolt
Defend and Duplicate the Key, Safer to Use
Tested to 500,000 Cycles
Three Contact Output,Suitable for all kinds of the Locks and
The Best Choice of Access Control
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
70 |
| Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
| Gross Weight(KG) |
14.7 |

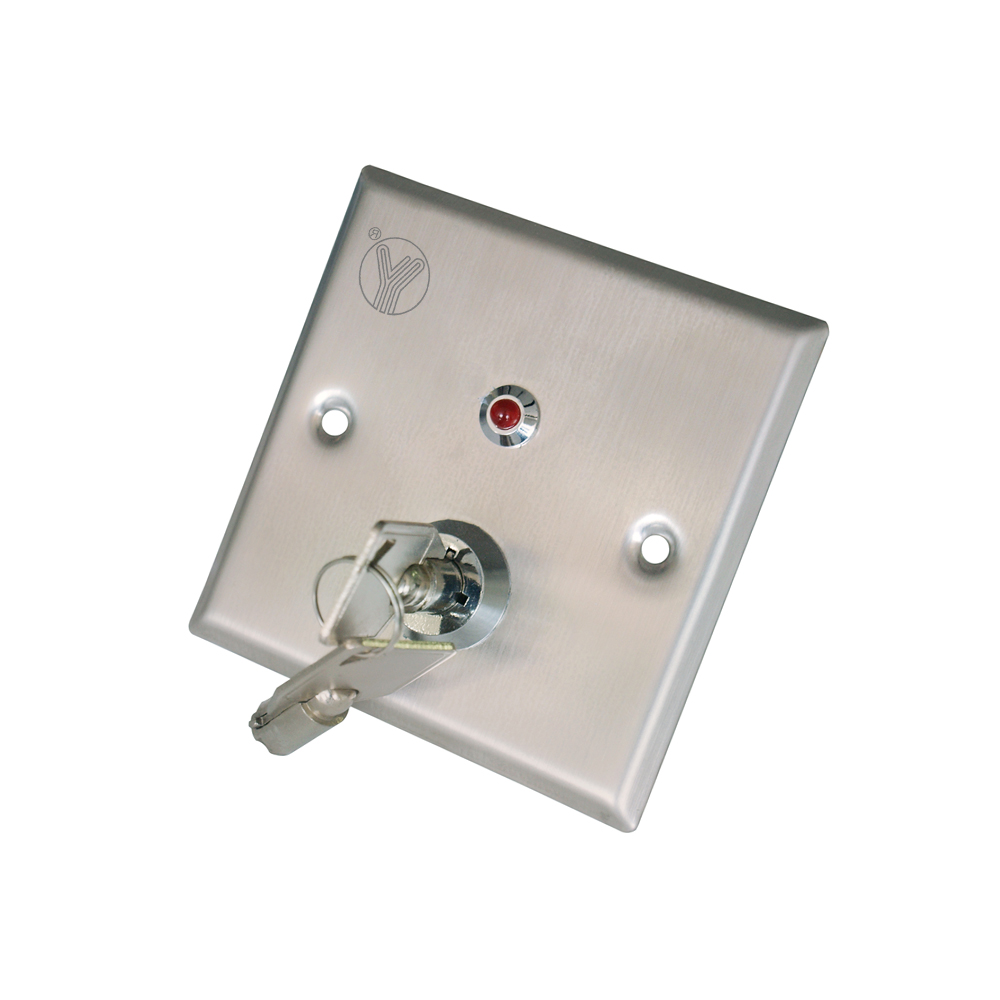

PBK-801B-P
