Product Parameter	Parameter Description
Fail Safe	Unlocked when energized

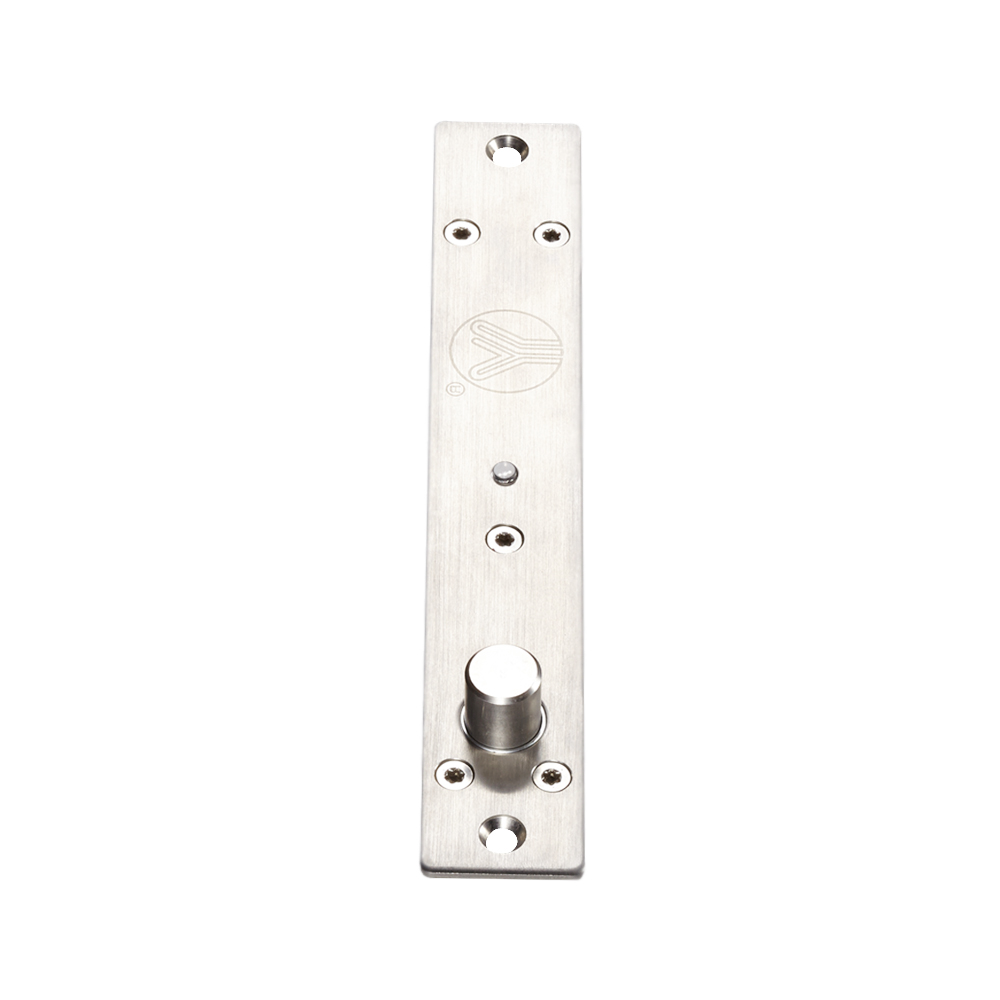

Face Plate	215Lx35WX38H(mm)
Strike	100Lx25Wx2.5W(mm)
Bolt	16(prolongation)*16(diameter)(mm)
Voltage	DC12V+10%
Start Current	1000mA
Standby Current	90mA
Solid Bolt	polishing housing, 2000Kg Holding Force
Suitable For	Wooden Door,Glass Door,Metal Door,Fireproof Door
LED	Light on indicates locked, light off indicates unlocked

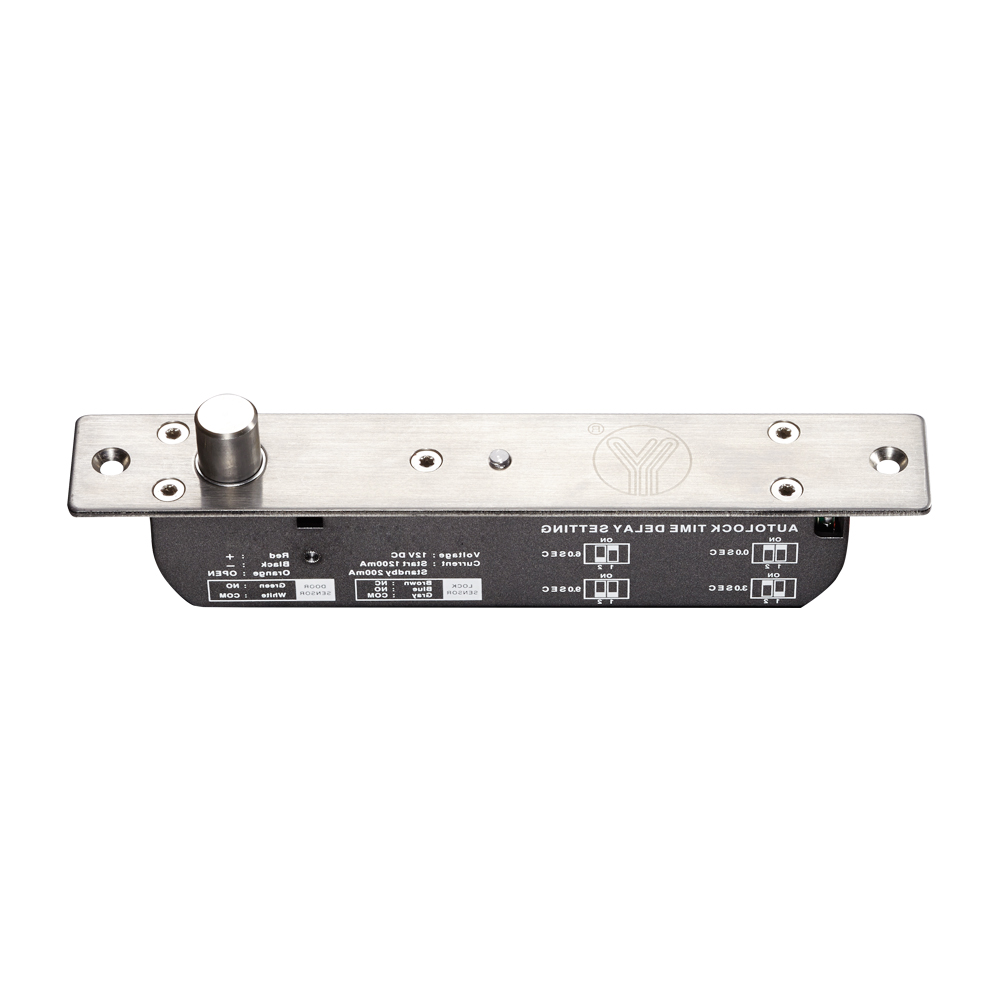

Autolock Time Delay	0,3,6,9sec
Signal Output	Lock signal:NO/NC/COM Door signal:NO/COM
Surface Temp	Low Temperature
Detection Distance	Within 8mm
Operating temp	-10～+55℃(14~131F)
Operating Humidity	0～90%(non-condensing)
Special Designed	Tested to 500000 cycles
Material	304 stainless steel, wire draw finishing
Weight	1.0kg

Low Temperature, safe & Durable. Low Power, Environmental Protection. Special photoelectricity control,three steps current application. Long Life  with 500000 Operations. MOV Provides Reverse Current Protection. Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt. Autolock Time Delay: 0,3,6,9sec. Lock signal:NO/NC/COM;Door signal:NO/COM. Double protection for loading current. Auto-relock if no Action within 5 secs. Certificate:CE&MA. Photoelectricity Control,Low Temperature，   A:The  Low Current is Changed immediately;   B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.   C:The Photoelectricity Control Technology,prevent the machanical defect.

Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN)	30
Packing Size(L*W*H)(cm)	54.5*20*30.5
Gross Weight(KG)	30

BBK-500、BBK-700
